Plaster edge bead

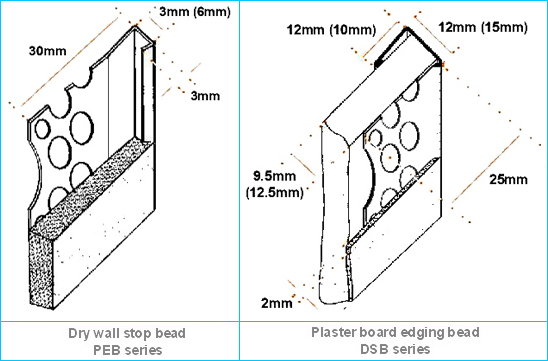

Plasterboard edging bead (plaster edge bead) is used to reinforced plasterboard edges with the perforated flange fixed flush to the board face prior to the final skim coat. The bead may also be fixed with the flange flush to the inner surface of the board for used in projection wall panelling.
Dry wall stop bead (plaster edge bead) is designed for thin coat edge protection at openings and for providing abutments of plastered areas to other wall finished. Light but extremely rigid, the scalloped edge
Material:
Galvanized steel
Size:

Model
Length
Plaster depth
QTY/box
PEB3/2.4
2.4m
3mm
50
PEB3/3.0
3.0m
3mm
PEB6
2.4m
6mm
PEB6/3.0
3.0m
6mm
DSB12
3.0m
12mm
DSB15
3.0m
15mm
*Flange width-30mm (dry wall stop bead); Flange width-25mm (plasterboard edging bead)
