Architrave bead production line

Description:

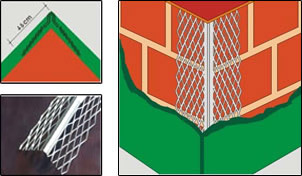

Architrave bead production line is used to produce the architrave bead which is mainly used to protect the angle of the wall.

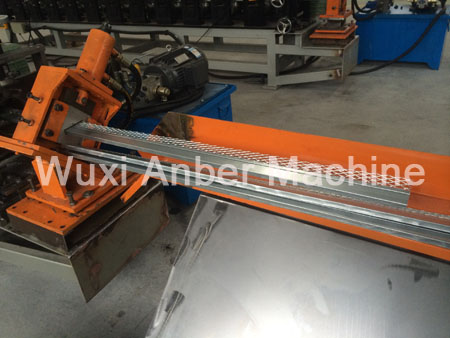

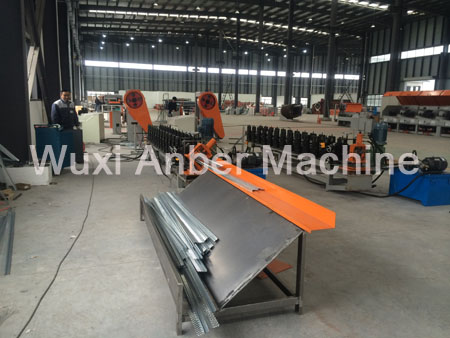

  • Architrave bead production line

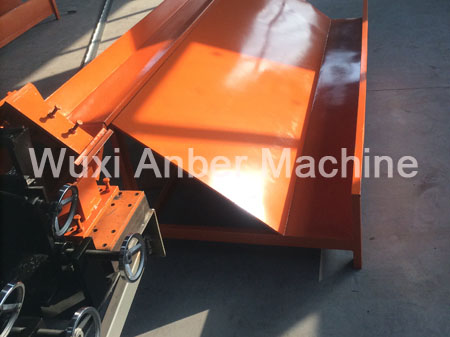

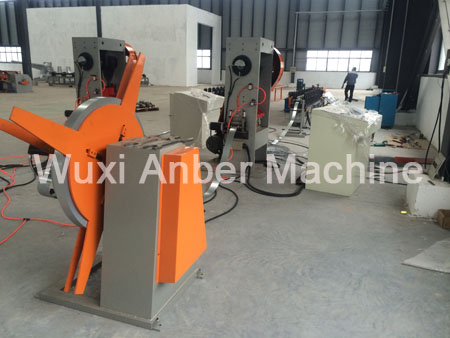

  • Architrave beads machine

  • Architrave beads machine

  • Architrave beads production

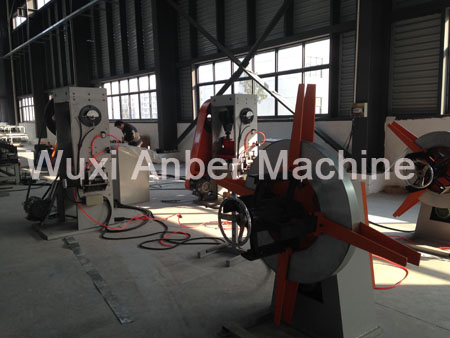

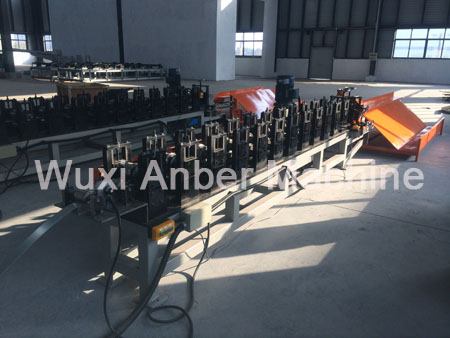

  • Expanded architrave bead machine

  • Expanded architrave bead machine


Maximum inner diameter: 480mm, can be adjustable
Loading weight: 1000Kgs
Max. strip width: 150mm
Total motor power: 9.5kw
Punching press: 15Tons
Mesh opening size: 25*10mm, according to the draw
Material thickness: 0.3-0.7mm
Production speed: 300 strokes/min
Layout size: 8600*1000*1750mm
Machine weight: 4980kg
Max. Length – 3,000mm

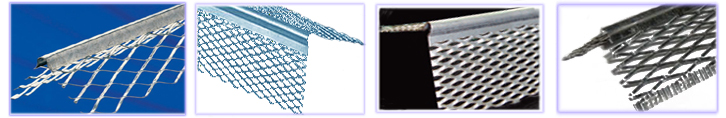

The finished products (architrave bead) :

angle bead
Angle bead -01
Angle bead-02
Angle bead-03
Angle bead-04
angle bead
