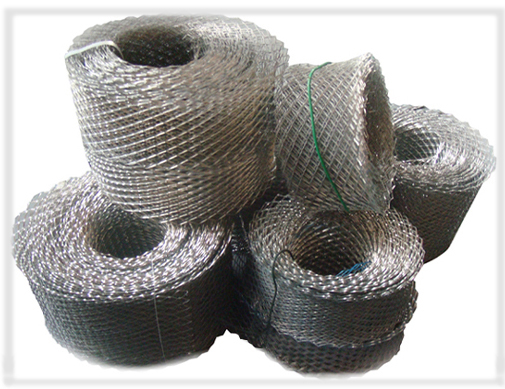

Brickwork reinforcement

Description:
Expanded metal brickwork reinforcement is embedded in mortar joints (usually every third course) to give extra tensile strength to wall and help withstand vibration and sudden loading, or to minimize unsightly cracks due to settlement. The material is galvanized or stainless steel and normally finished in 20 meter coils.

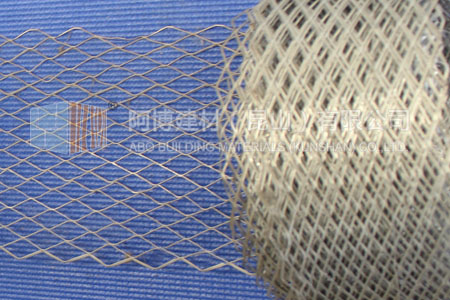

Block work expanded mesh

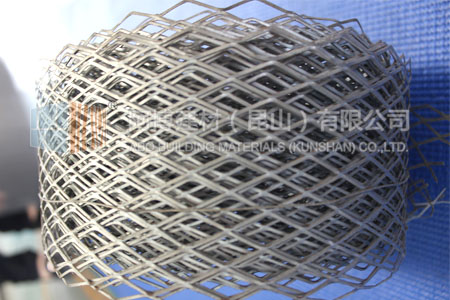

Brickwork mesh

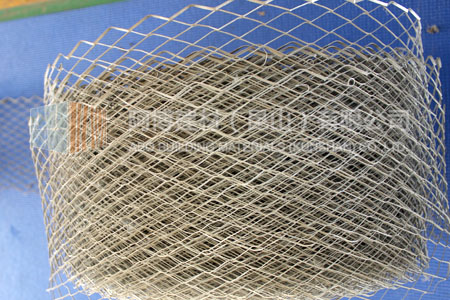

Coil mesh

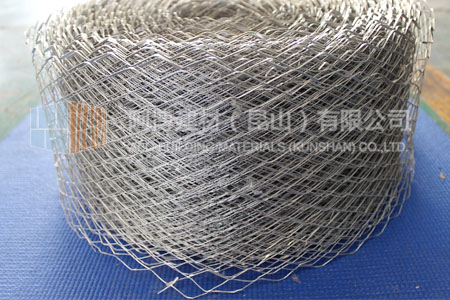

Brickwork reinforcement mesh brick

Expanded coil mesh

Model	Coil width	SWD*LWD	Length	Application
ABE-BR10	100mm	15mm*25mm	100mm	For 100mm wall
ABE-BR15	150mm		150mm	20m
ABE-BR20	200mm		200mm	20m
ABE-BR30	300mm		300mm	20m
