High speed Hi-rib lath production line

Description:
The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall.Its excellent mechanical performance, light weight make it suitable for segmentation pouring concrete specially. This machine has advanced scientific and a wide range of practicability.
Equipment composition:
1.Decoiler
2.Punching Machine
3.Forming and cutting integrated machine
4.Hydraulic cutter (on forming machine)
5.Collecting table
6.Electric control cabinet

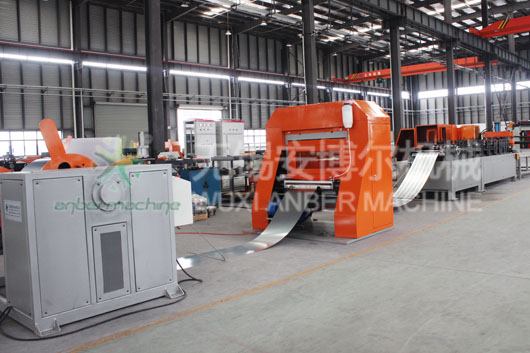

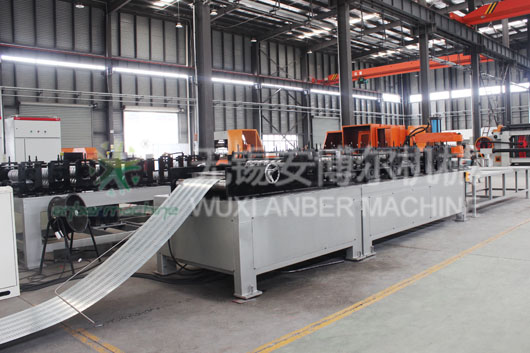

Hi-rib lath production line

Hi-rib lath production line

Rib lath production line

Rib lath production line

Metal lath production line

Metal lath production line

Rib lath machine

Rib lath machine

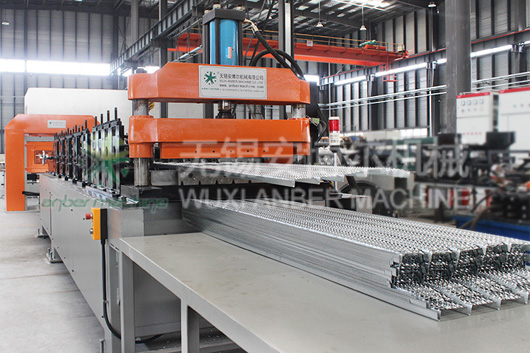

High rib lath machine

High rib lath machine



Main technical parameters:

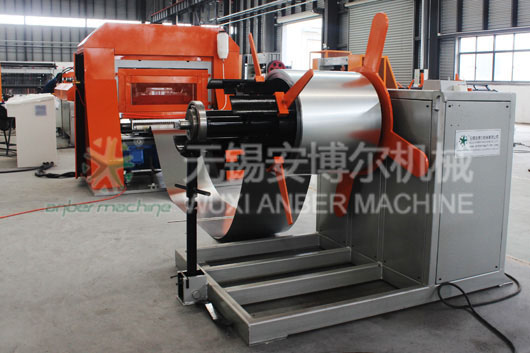

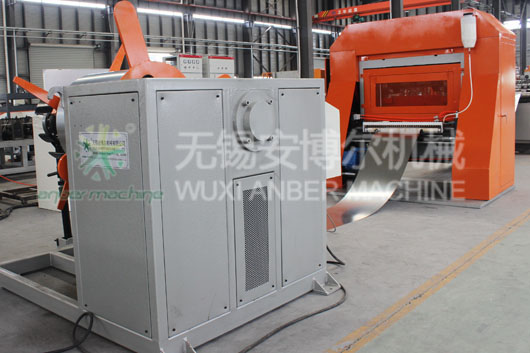

1.Decoiler(Model ABE-KL850)

No.
Name
Parameter
1
ID
420 ~520mm Adjustable
2
Loading weight
2500Kg
3
Material width
850mm
4
Centerline height
962mm
5
Decoiling speed
3.5rpm
6
Tension form
Manual(Rotate)
7
Motor
Power:2.2KW
Rotation speed:1420r/min (380V/50HZ)
8
Reducer
Speed ratio of reducer 135.833
9
Voltage
3-phaseAC380V/50Hz
10
Size
L1250W2095H1562mm
11
Weight
800 kg

2.Punching machine:(Model ABE25-1000500)
No.
Name
Parameter
1
Punching force(Nominal pressure)
250 KN
2
Expanding speed
430~500 strokes/min
3
Highest speed
3.5m/min
4
Feeding distance
7.5mm
5
Press force
1.52 KN
6
Slide stroke
8mm
7
Link rod adjust distance
10 mm
8
Pay-off Motor
2.0KW, rotate speed: 2000r/min, Speed ratio of reducer i:5
9
Mold driven
V belt(B type)
10
Motor
Power: 15Kw, rotate speed: 1440r/min
11
Voltage
3-phase, AC380V/50Hz
12
Mode
Effective trolley: 1mm, Material: Cr12MO1V1, Hardness: HRC58-62
8
Size
L1300W1920H1775mm
9
Weight
2850Kg

3.Forming and cutting integrated machine:(Model ABE-CX690)
No.
Name
Parameter
1
Former roller
10 passages (10 up, 10 down), roller diameter: 173.27mm(max),
material: 40Cr, HRC48
2
Driven type
20A roller chain driven+gear
3
Press type
Bolt press
4
Motor
Power:5.5KW, rotate speed: 1440r/min; Speed ratio of reducer:i 49.16
5
Voltage
3-phrase,AC 380V/50Hz
6
Size
L5350W1430H1700mm
7
Weight
3500Kg

4.Hydraulic cutter (on forming machine)
No.
Name
Parameter
1
Shear force
Hydraulic fluid 40#,system pressure 10MPa,
hydro-cylinder63300mm
2
Cutting blade
Material:Cr12MO1V1,Hardness:HRC58-62
3
Cutting speed
Adjustable, encoder count, length cut
4
Motor
Power 5.5KW,1440rpm
5
Voltage
Three phrase,AC 380V/50Hz
6
Size
L380W1096H1870mm
7

Weight

395Kg


5.Collecting table
Abstract:Made by welding with the profile.

No.

Name

Parameter

1

Size

L 3520W 1020H1 712 mm

2

Weight

187Kg

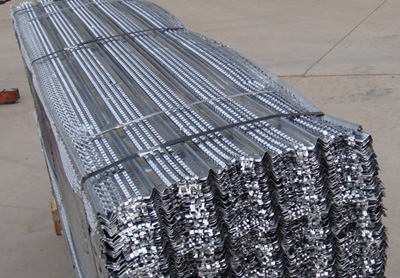

Finished Products:

Hi-rib lath (high ribbed lath/High Ribbed Formwork) is manufactured from hot-dipped galvanized steel sheets. has been applied to the concrete structure of porjects all over the world. As early as 1969, it has tested and verified by British Cement Association of and many architecture-structure experts in ESPM that it is superior over traditional template including wooden template, steel temlate etc. Because it has better stress stress strength and free shape. It is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks, storang tanks, skysrapers, ocean engineering and irregular or curved shapes.
Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork
Installation:
Hi-rib lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face.
Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together.
Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.

Model
Weight
Material thickness
Rib height
Rib distance
Width
Length
ABE-HB30/0.8
2.6kg
0.30mm
20.5mm
89mm
450mm
2200mm
ABE-HB30/0.5
12.7mm
89mm
ABE-HB35/0.8
3kg
0.35mm
20.5mm
89mm
ABE-HB35/0.5
12.7mm
89mm
ABE-HB45/0.8
3.4kg
0.45mm
20.5mm
89mm
ABE-HB45/0.5
12.7mm
89mm
ABE-HB50/0.8
3.8kg
0.50mm
20.5mm
89mm
ABE-HB55/0.8
4.2kg
0.55mm
20.5mm
89mm


Hi-rib lath Hi-rib formwork mesh
Application:

Hi-rib lath Hy-rib lath application Hy-rib lath application
Occupy area: 11m*2m*2.5m
