Hi-rib lath production line

Description:

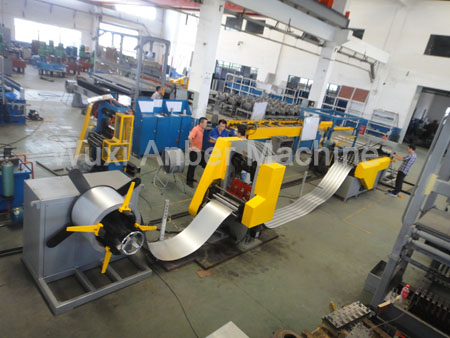

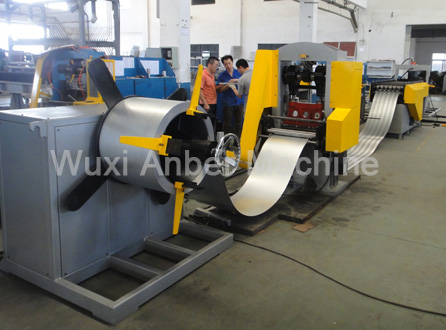

The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall, the hi-rib lath production line Working process is De-coil → punching → expanding and shearing → Rib lath feed out.

  • Hi-lath machine

  • Hi-lath metal machine

  • High rib lath production line

  • hi-rib lath production line

Parameter:
Decoiler:
Inner diameter 350mm
Outer diameter 700mm
Material width 475-500MM
Loading weight 2000kg
Servo motor 1.5KW
Main machine
Pressure 300 KN
Material thickness Max.1.2mm GI
Mesh width ≤700 mm
Punching speed Max. 300 strokes/min, or 6m/min
Slide stroke 20 mm
Max. Die height 200 mm
Die height adjustment MAX. 50 mm
Working table size 500×700 mm
Overall size (L×W×H) 1500×1100×1700 mm
Motor Power 7.5 KW
Machine weight 1500kg

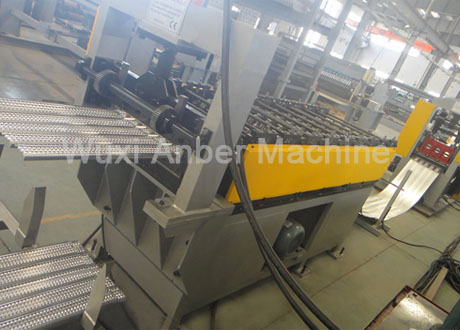

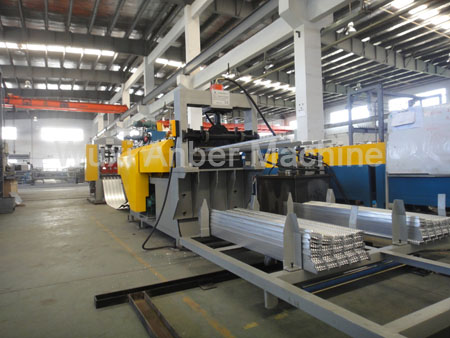

Roll forming and cutting
Driven way Chain and gear
Forming Motor power 22kw
Profiling mold 45 Steel
Roller station 18
Hydraulic cut 7MPa 40L Tank
Size 7500mmWx1100mmLx1700mmH
Weight 3500kg

Finished Products:

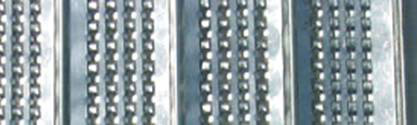

Hi-rib lath (high ribbed lath/High Ribbed Formwork) is manufactured from hot-dipped galvanized steel sheets. has been applied to the concrete structure of porjects all over the world. As early as 1969, it has tested and verified by British Cement Association of and many architecture-structure experts in ESPM that it is superior over traditional template including wooden template, steel temlate etc. Because it has better stress stress strength and free shape. It is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks, storang tanks, skysrapers, ocean engineering and irregular or curved shapes. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork Installation: Hi-rib lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face. Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.
Model
Weight
Material thickness
Rib height
Rib distance
Width
Length
ABE-HB30/0.8
2.6kg
0.30mm
20.5mm
89mm
450mm
2200mm
ABE-HB30/0.5
12.7mm
89mm
ABE-HB35/0.8
3kg
0.35mm
20.5mm
89mm
ABE-HB35/0.5
12.7mm
89mm
ABE-HB45/0.8
3.4kg
0.45mm
20.5mm
89mm
ABE-HB45/0.5
12.7mm
89mm
ABE-HB50/0.8
3.8kg
0.50mm
20.5mm
89mm
ABE-HB55/0.8
4.2kg
0.55mm
20.5mm
89mm


Hi-rib lath Hi-rib formwork mesh
Application:

Hi-rib lath Hy-rib lath application Hy-rib lath application

Hy-rib lath application Hy-rib lath application
