High speed Rib lath production line

Description:
The rib lath machine is used to produce the rib lath which is applied to plaster the concrete and reinforce the wall light weight and high reinforcement.

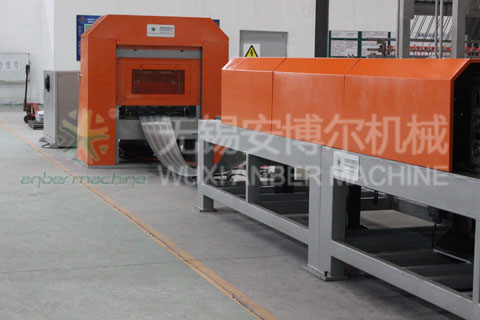

rib lath machine schedule map

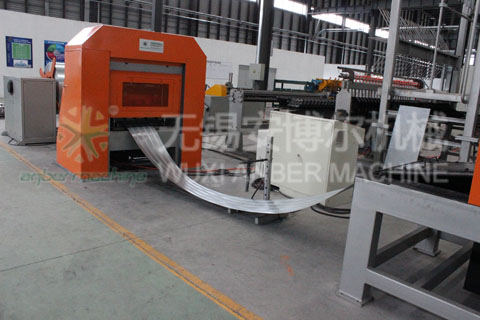

rib lath machine

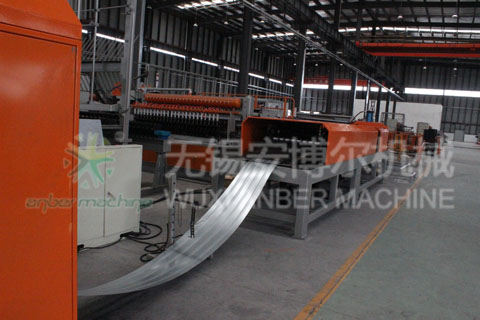

rib lath production line with lath collector

rib lath rollformer

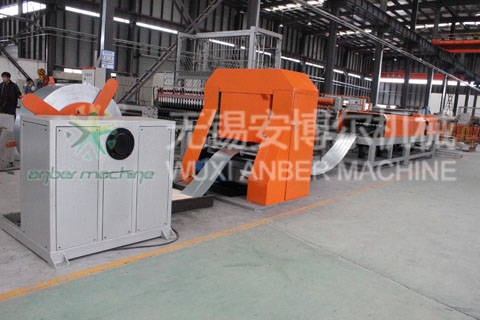

controlling system of rib lath production line

Parameter:
Rib lath is a flexible arrangement structure product which use galvanized sheet steel plate by punching and shearing and stretching process forming, which is of light weight and high reinforce.
Rib lath is mainly used to construction engineering, the material use galvanized sheet steel plate, and the raw material thickness is 0.513-0.665mm, the theory width is 5334.mm.
Length: 2493mm, width: 686mm
Dimensions: strand width 1.5mm, rib distance 98mm, LWD: 10mm, SWD: 5mm
Main parts of rib lath machine:
Decoiler:
Inner diameter: Φ420mm—Φ520mm, can adjust.
Loading weight: 2500Kg
Motor Power: 2.2KW
Rotate speed: 1728r/min
Reducer: Speed ratio 60
Distance of the center from the ground: 962mm
Overall size: 1250×1150×1650mm
Main punching machine:
Expanding speed: 430-520 stroke/min
Mold driven: V belt drive
Motor Power: 7.5KW
Rotate speed: 1728r/min
Mold Effective stroke: 8mm, material: Cr12MO1V1, Hardness: HRC58-62
Overall size: 1000×1150×1705mm
Roll former and hydraulic cutter:
Motor Power: 7.5KW
Rotate speed: 1728r/min
Reducer Speed ratio: 40.17
Driven type: Chain drive
Cutting type: Hydraulic cut
Cutting speed: Can be adjusted
Overall size: 6350×1250×1600mm
Electrical controlling cabinet:
PLC: Panasonic IPO-AROMAT or similar brand
Electric elements: Schneider
Finished Products:
Rib- lath is expanded metal-lath stiffened with longitudinal ribs. The furring design of the mesh provides efficient background plaster for construction of partition, suspended ceilings and refurbishment works. The advantage of ribbed- lath over metal-lathing is that support centers can be increased or widened.

Rib lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face. Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.

Model	Name	Sheet size	Wt (lbs)	Wt (kg)	PCS/BDL	PCS/PLT
RB2.75	1/8"rib-lath	27"×96"	3.7	1.7	10	500
RB3.4-1	1/8"rib-lath	27"×96"	4.4	2	10	500
RB3.4-3	3/8"rib-lath	27"×96"	5.1	2.3	10	500
RB4.0	3/8"rib-lath	27"×96"	5.7	2.6	10	500

Application:
Rib lath is idea for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face. Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixing should be used at sufficient intervals to hold the lath firmly in position.
